The ggalign
package extends ggplot2
to

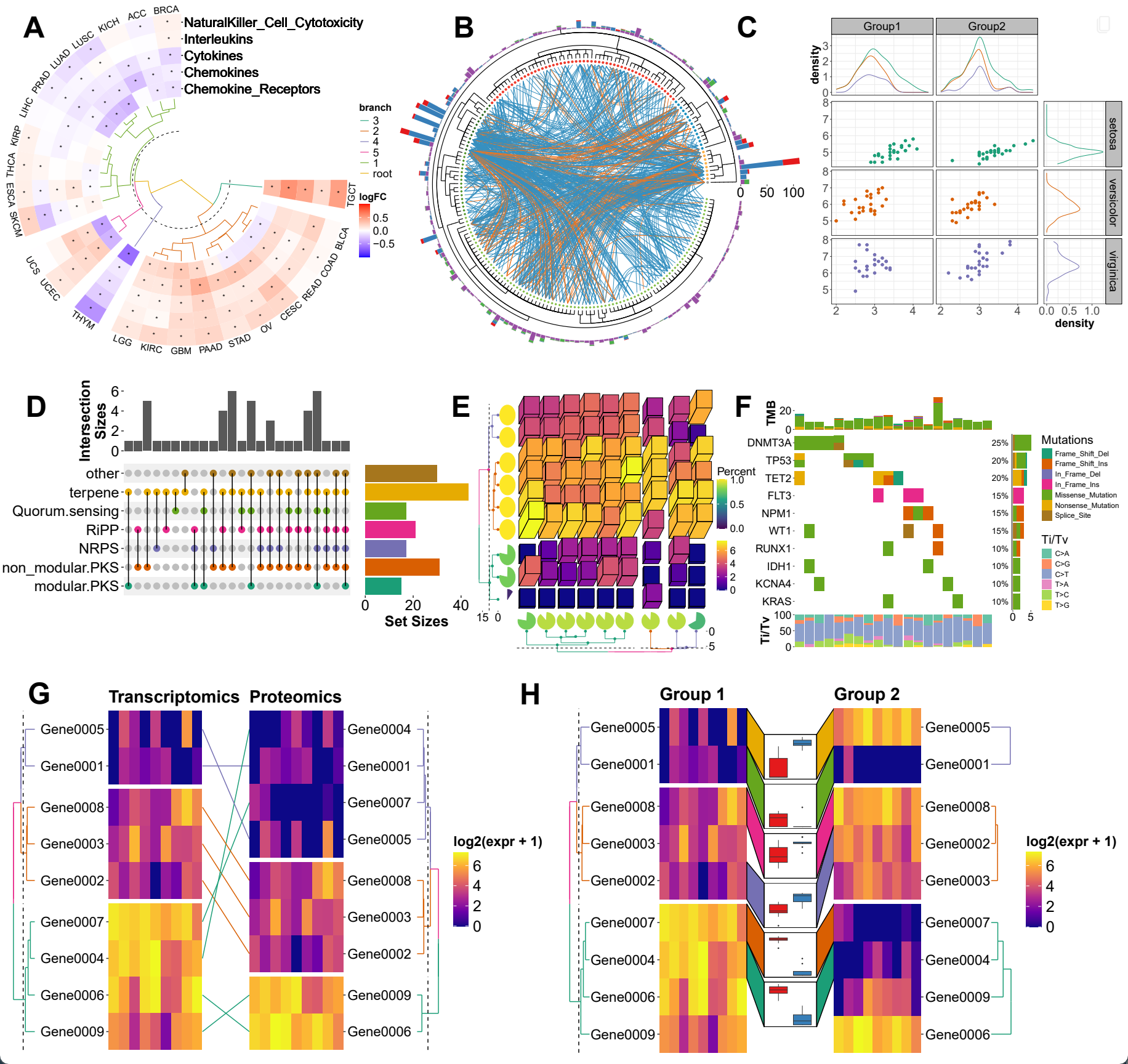

simplify the creation of complex, multi-plot visualizations. Built on
the familiar grammar of graphics, it provides intuitive tools to align
and organize plots—such as heatmaps, dendrograms, or circular
layouts—while handling intricate relationships in multi-omics data, like
genomics or microbiomes. Whether you need to stack plots, arrange them
around a central figure, or link diverse datasets (e.g., genes to
pathways), ggalign
offers flexibility and precision with
minimal effort.
ggalign
?ggalign

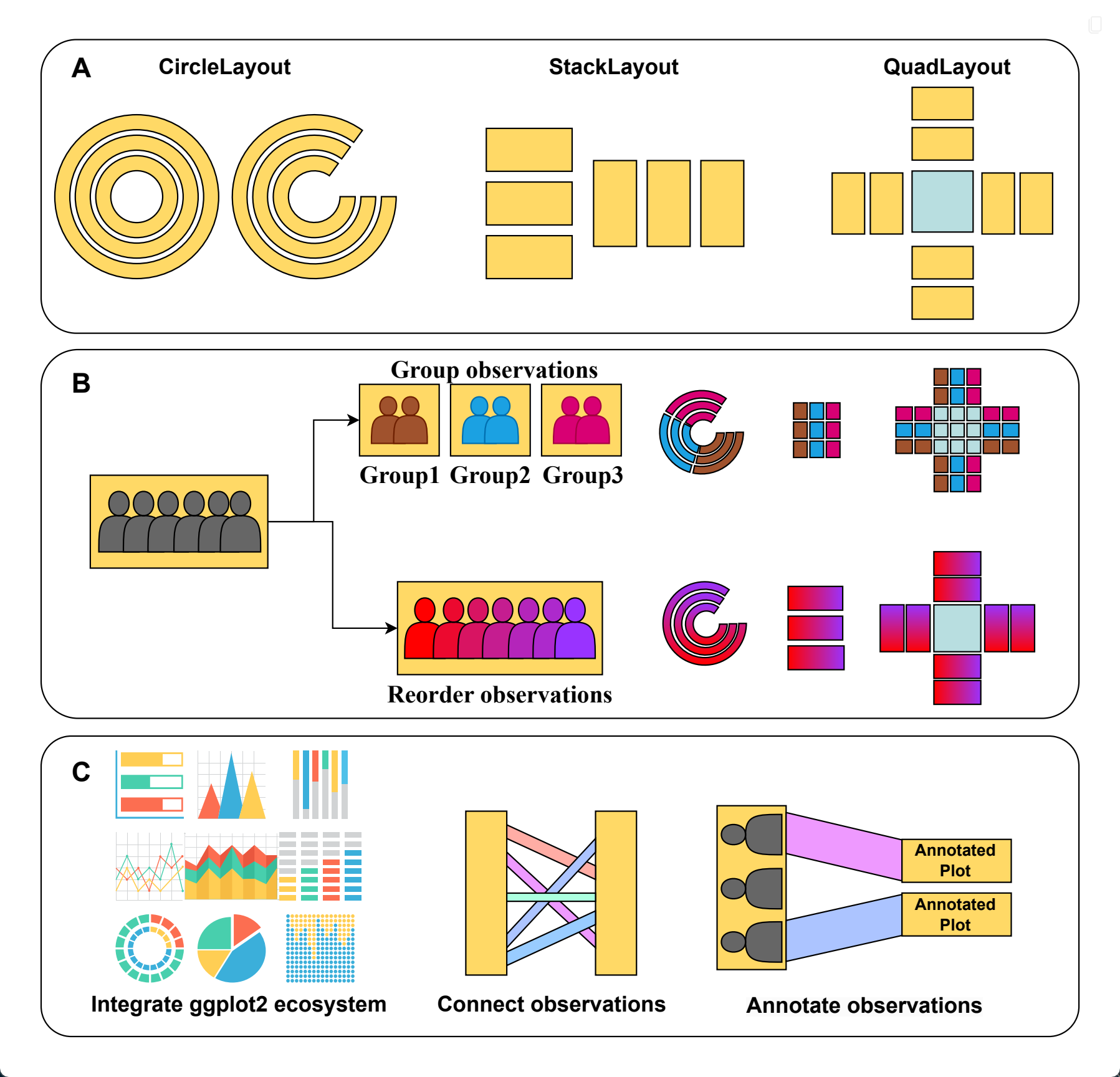

focuses on aligning observations across multiple
plots. If you’ve ever struggled with aligning plots with self-contained
ordering (like dendrogram), or applying consistent grouping or ordering
across multiple plots (e.g., with k-means clustering),
ggalign
is designed to make this easier. The package
integrates seamlessly with ggplot2, providing the flexibility to use its
geoms, scales, and other components for complex visualizations.
You can install ggalign
from CRAN
using:
install.packages("ggalign")
Alternatively, install the development version from r-universe with:
install.packages("ggalign",
repos = c("https://yunuuuu.r-universe.dev", "https://cloud.r-project.org")
)
or from GitHub with:
# install.packages("remotes")
::install_github("Yunuuuu/ggalign") remotes
The complete tutorial is available at: https://yunuuuu.github.io/ggalign-book/
For the full reference documentation, visit: https://yunuuuu.github.io/ggalign/
ggalign
|
marsilea
|
ComplexHeatmap
|
||
---|---|---|---|---|
Language | R | Python | R | |
User Interface | Declarative | Declarative | Functional | |
Plot System | ggplot2 (Advanced plot system built on grid system) | Matplotlib | grid | |
Focus | Composable Visualization | Composable Visualization | Heatmap | |
StackLayout | ✅ | ✅ | ✅ | |
QuadLayout | ✅ | ✅ | Heatmap Only (discrete variables) | |
CircleLayout | ✅ | ❌ | ❌ | |
Relationship | One-to-One | ✅ | ✅ | ✅ |
One-to-Many/Many-to-One | ✅ | ❌ | ❌ | |
Many-to-Many | ✅ | ❌ | ❌ | |
Crosswise | ✅ | ❌ | ❌ | |
Annotate observations | ✅ | ❌ | ✅ | |
Fully Compatible with ggplot2 | ✅ | ❌ | ❌ |
Specification | ggalign |
marsilea |
ComplexHeatmap |
---|---|---|---|
Reorder observations | ✅ | ✅ | Heatmap Only |
Group observations into different panels | ✅ | ✅ | Heatmap Only |
Clustering algorithm | Kmeans,Hierarchical Clustering and arbitary algorithm | ❌ | Kmeans,Hierarchical Clustering and arbitary algorithm |
Legends Creation | Automatic | Automatic | Limited automatic, requires manual add |
Legends Position | Anywhere, can be controlled for a single plot | Anywhere | Four sides, can only be placed on one side at a time |
Dendrogram | Tree from both hclust or ape |
hclust only |
hclust only |
Tanglegram | ✅ | ❌ | ❌ |
3D Heatmap | ✅ | ❌ | ✅ |
Oncoplot | ✅ | ✅ | ✅ |
UpSet plot | ✅ | ✅ | ✅ |
I would like to express my sincere gratitude to the contributors of
the ggplot2
project for providing a powerful and flexible
framework for data visualization in R. Their work laid the foundation
for the functionality and design of this package. I would also like to
thank the patchwork
project, from which the core coding for
the plot composer was adapted. The patchwork
library
provided a useful mechanism for combining and aligning plots, which was
modified to suit the needs of this package. Without the contributions of
these open-source projects, this package would not have been
possible.
Additionally, I would like to extend my heartfelt thanks to
@teunbrand
, who has fulfilled my numerous feature requests,
and assisted with the integration of new functions into ggplot2.
